Artifact Evaluation for Visualinux

Overview

Visualinux is a debugging framework that can simplify the program state of Linux kernel to the extent that one can visually understand with low programming complexity and efforts. This repo provides the source code of our prototype implementation. We also provide an online environment to reproduce the textbook evaluation results of our paper submission.

Deployment

Online Evaluation

We have prepared an online site for a quick experience of Visualinux. You can painlessly enter a Linux kernel gdb debugging environment and check out the effect of our visualized debugger. Note that the online site only allows one connection at a time.

Double-blind review: We guarantee that there is no login activity in the online site and we do not track any visitor’s IP address. You can also use a proxy to further hide your identity.

You can deploy Visualinux in your own debugging environment. Check the following subsections for details.

Requirements

Visualinux is fully compatible to gdb and it is available as long as one can debug the Linux kernel through gdb with python extension enabled. The tool has been well-tested on Ubuntu 22.04 and Python 3.10.12, with both gdb (QEMU) and kgdb (rpi-400) targeting on Linux kernel 5.15 and 6.1.

Fresh Build

This repo provides several scripts for a quick fresh build:

./scripts/initdev.sh
./scripts/get-busybox.sh
./scripts/get-kernel.sh default
cp ./scripts/kernel.config/linux-6.1.25.config ./kernel/.config
make build

These scripts are not mandatory to use; you can prepare a Linux kernel debugging environment on your own and meet the following requirements:

Moreover, please make sure your gdb is able to auto-load gdb scripts and extensions (scripts/config.gdb, visualinux-gdb.py and kernel/vmlinux-gdb.py), e.g. check if they are in your gdb auto-load safe-path. Otherwise you have to manually load these scripts in each new debugging session.

Also note that the kernel should be compiled with debug info enabled, and compiled/runned with KASLR disabled.

Run

Start a Debug Session

This repo provides vscode configuration files, so you can open the vscode workspace in .vscode/visualinux.code-workspace and launch a gdb-qemu debugging task directly.

Alternatively, you can start a pure gdb in shell command:

make start    # in terminal 1
make attach   # in terminal 2

Start the Visualizer

In another terminal:

cd visualizer/
npm run dev

try Visualinux

At any gdb breakpoint, you can execute the gdb command vl-update <path> (with a -exec prefix in vscode environment) to extract the kernel state view according to a specified DSL program dsl/<path>.vl. If <path> is not provided, dsl/default.vl will be used.

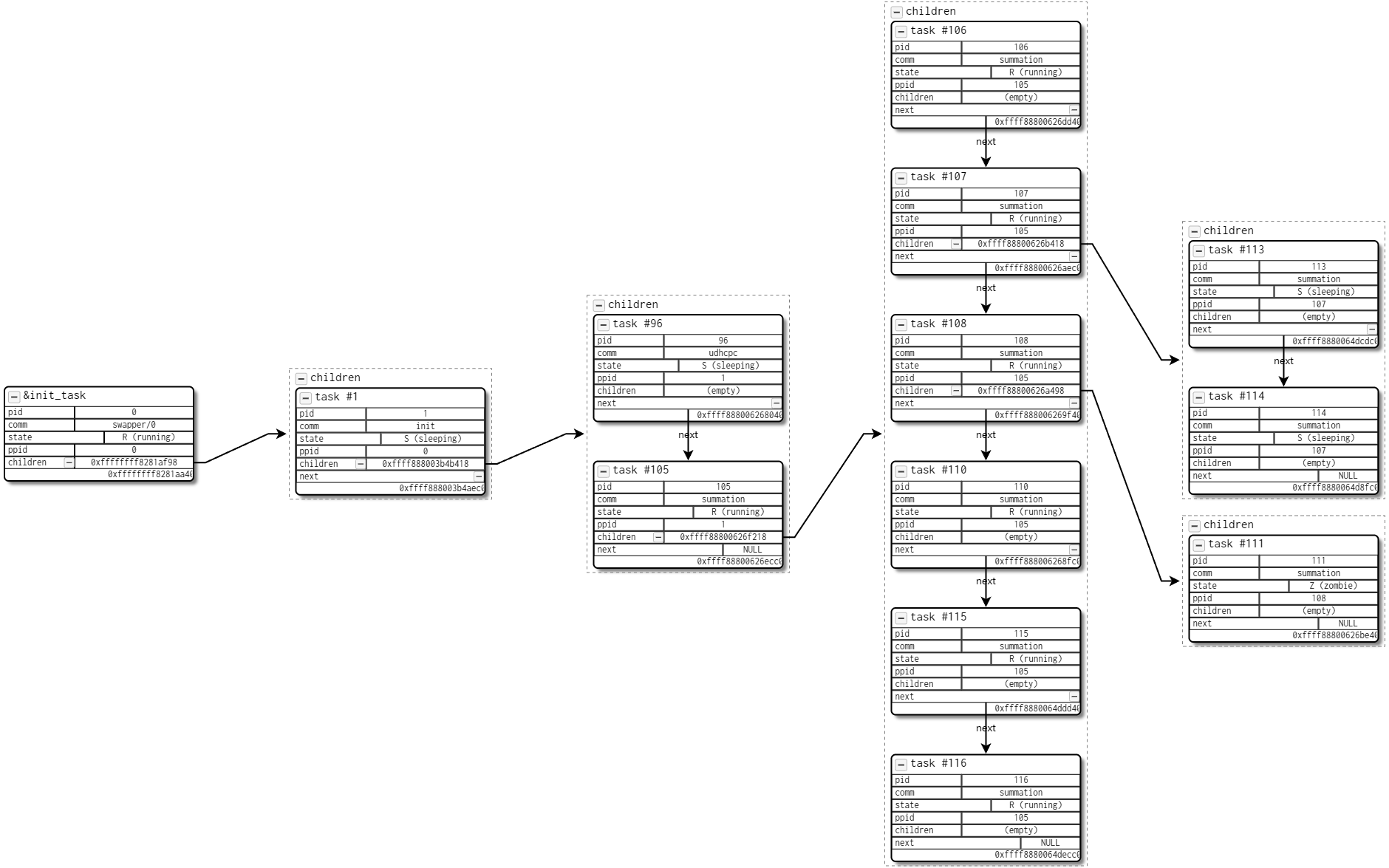

The visualizer polls the latest extracted data and updates the displayed object graphs.

Reproduce the Evaluation

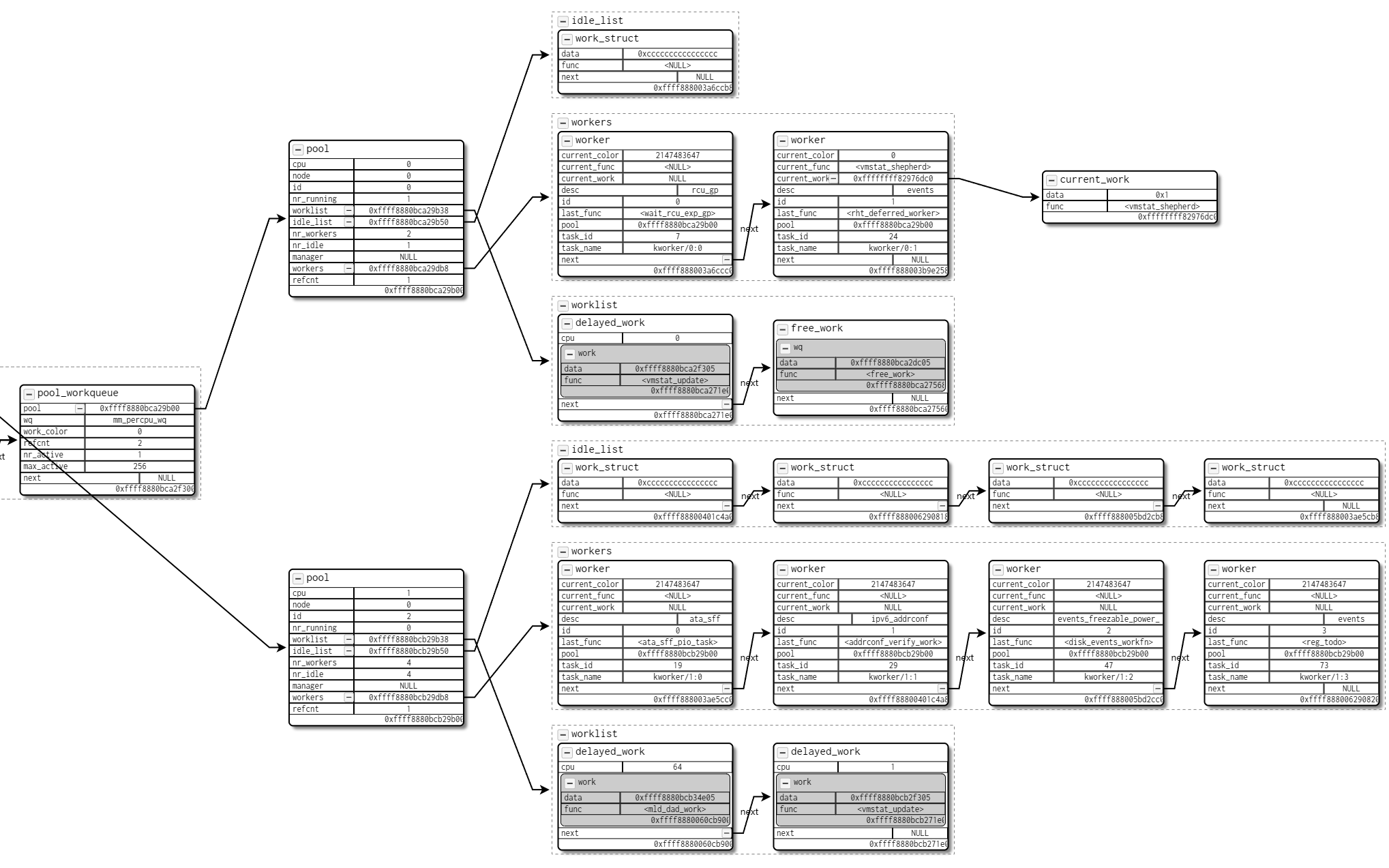

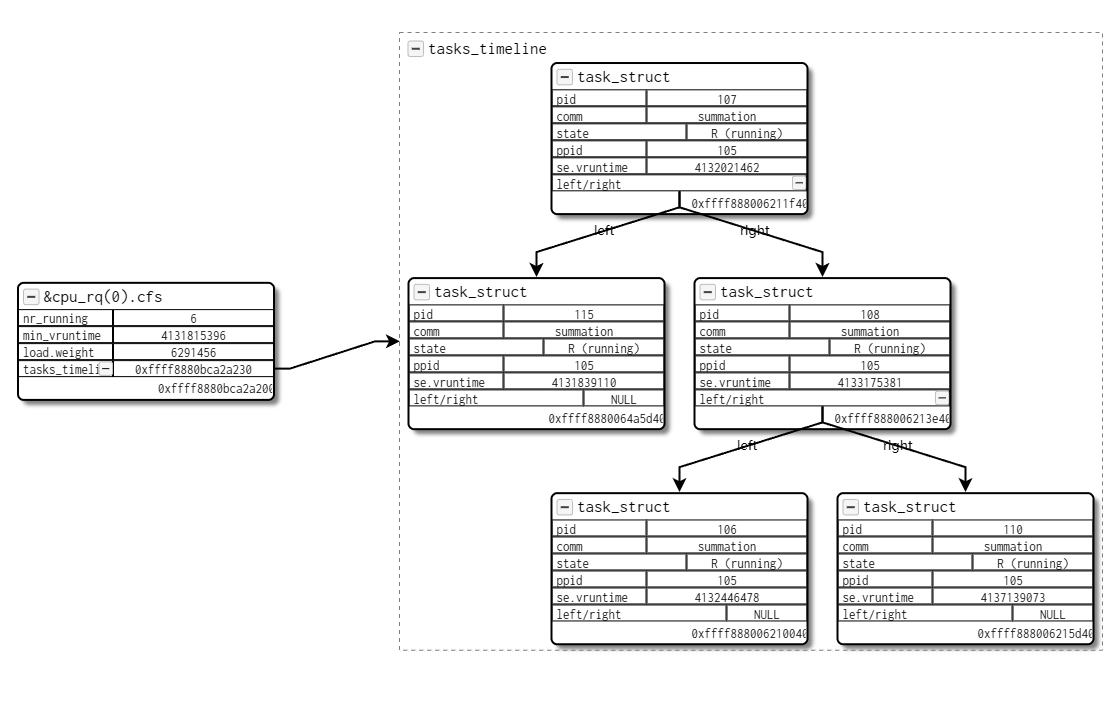

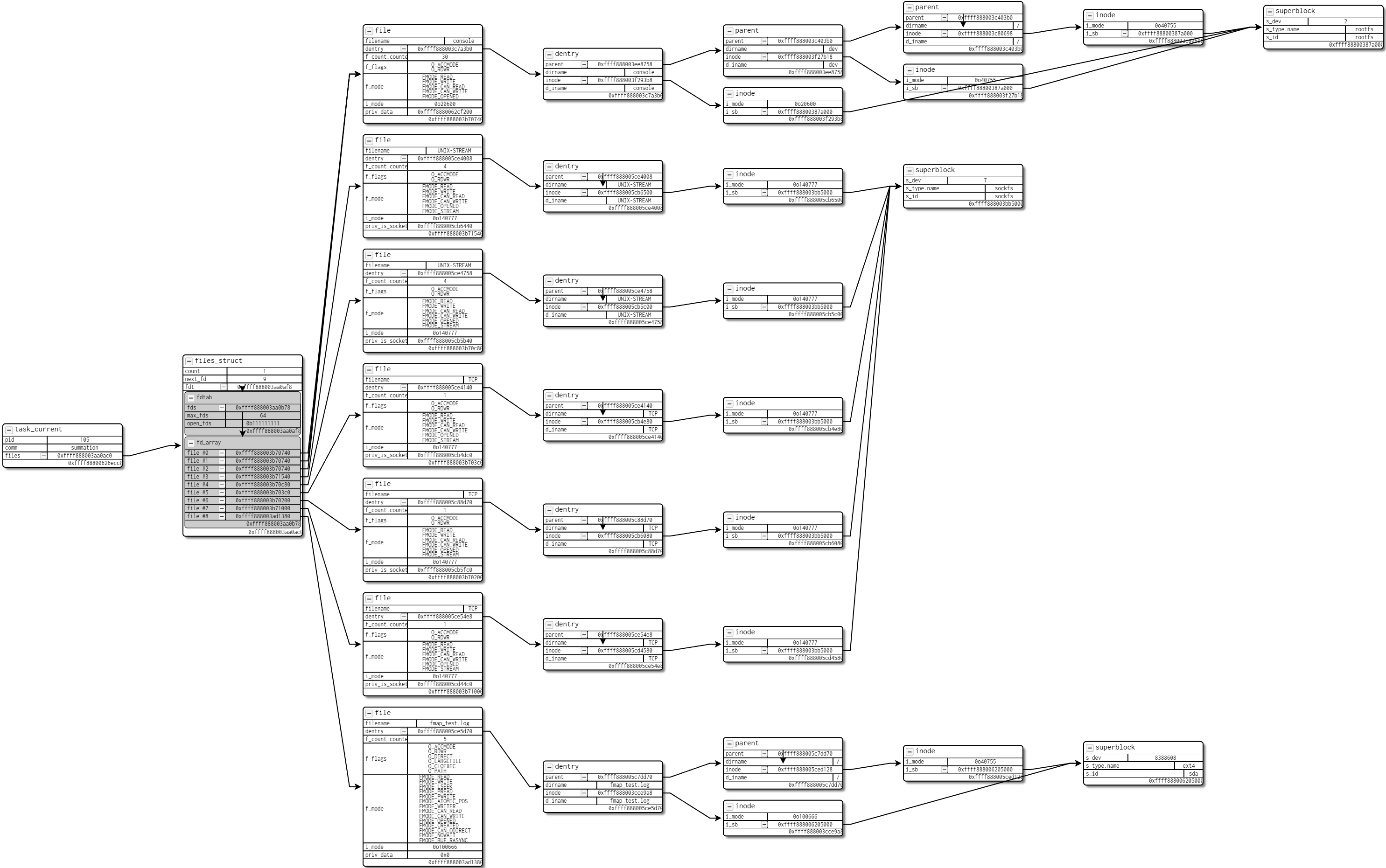

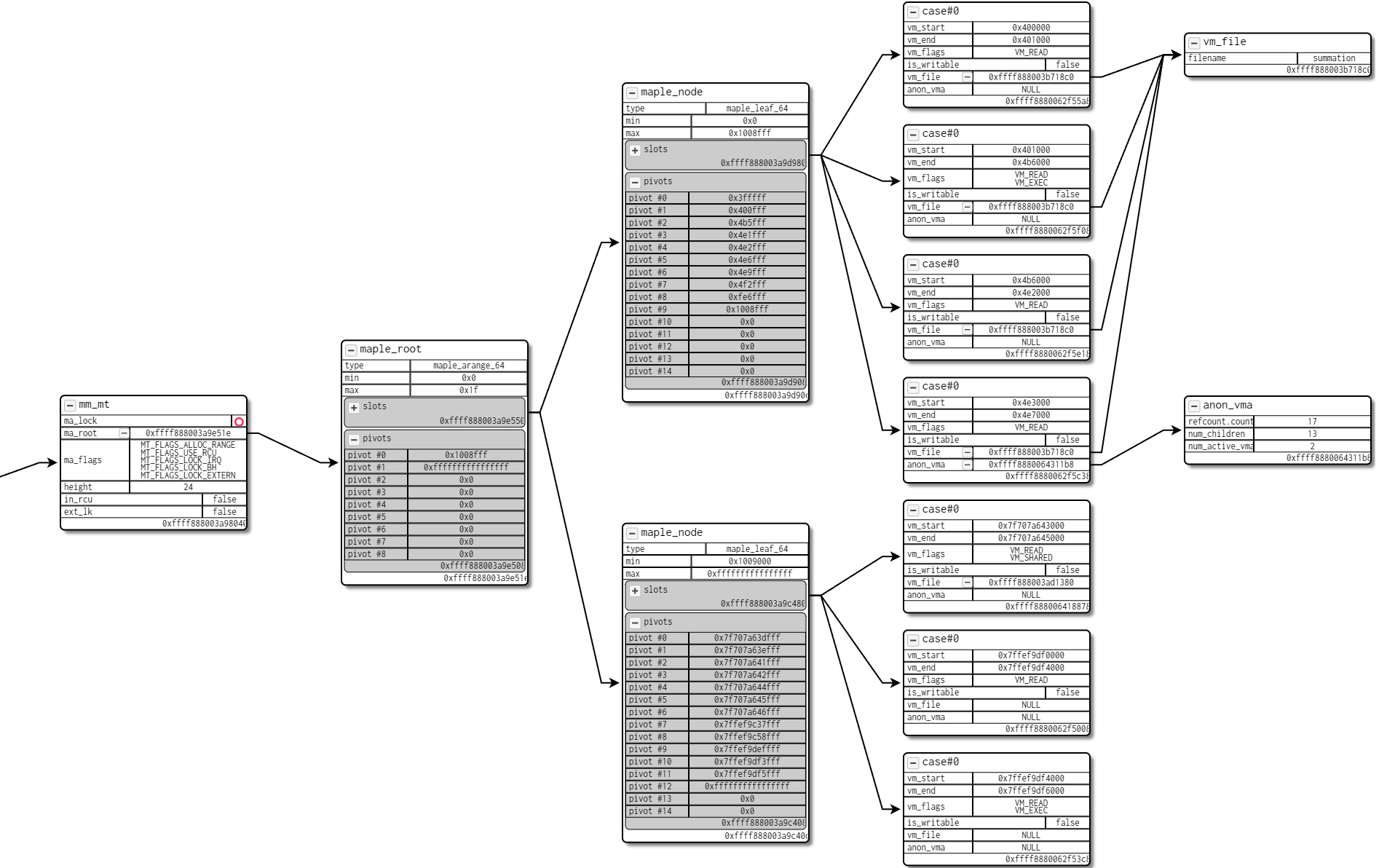

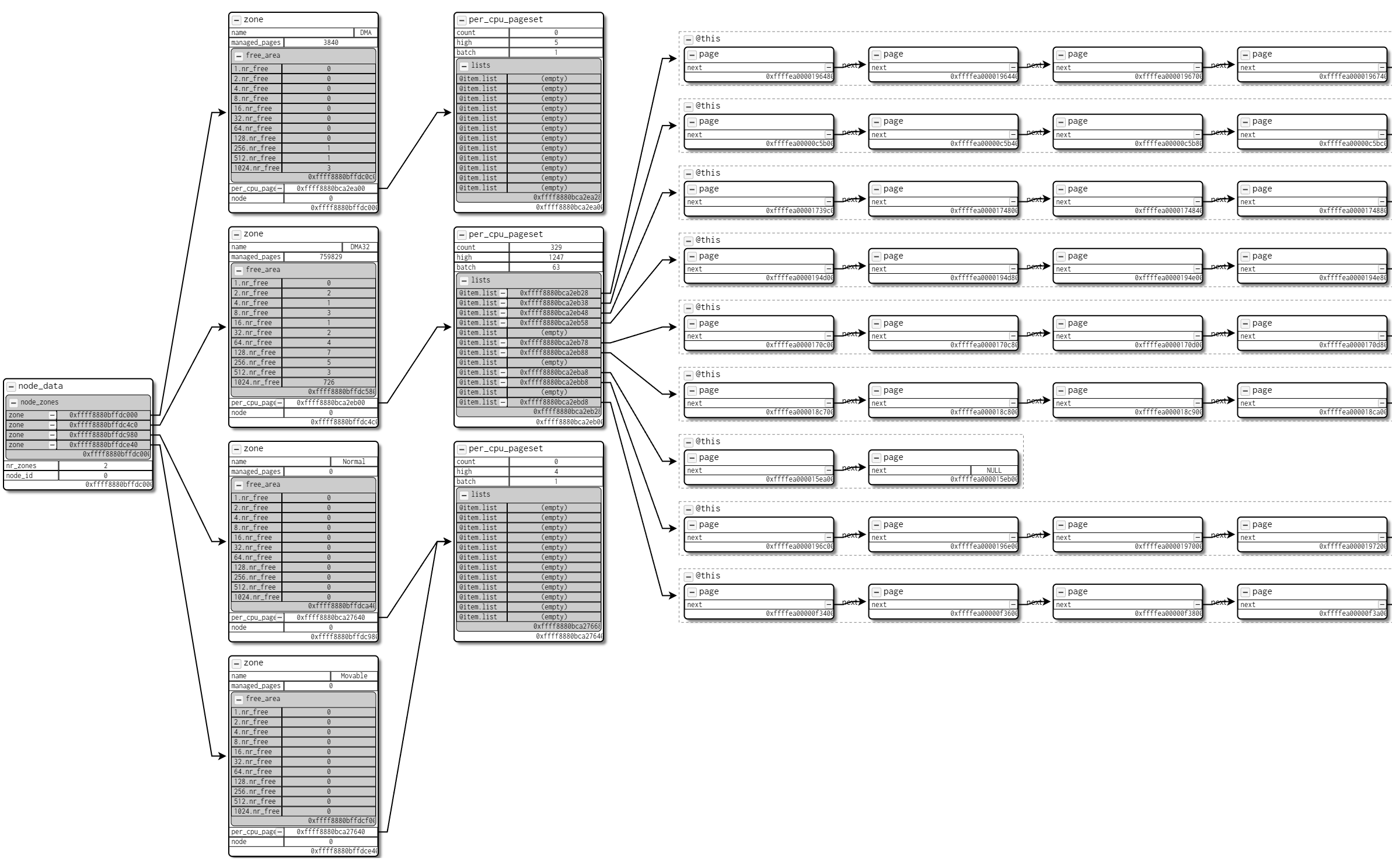

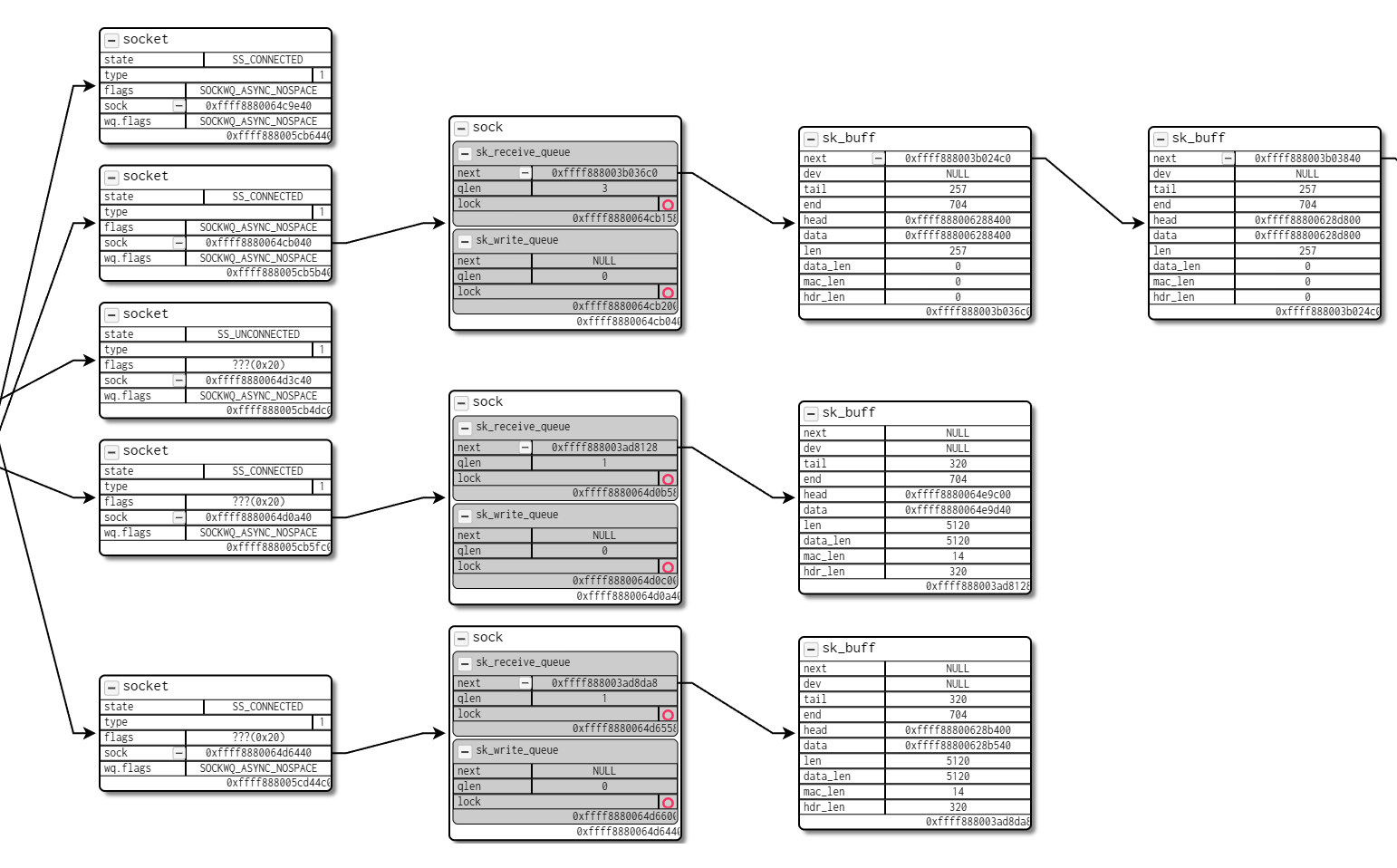

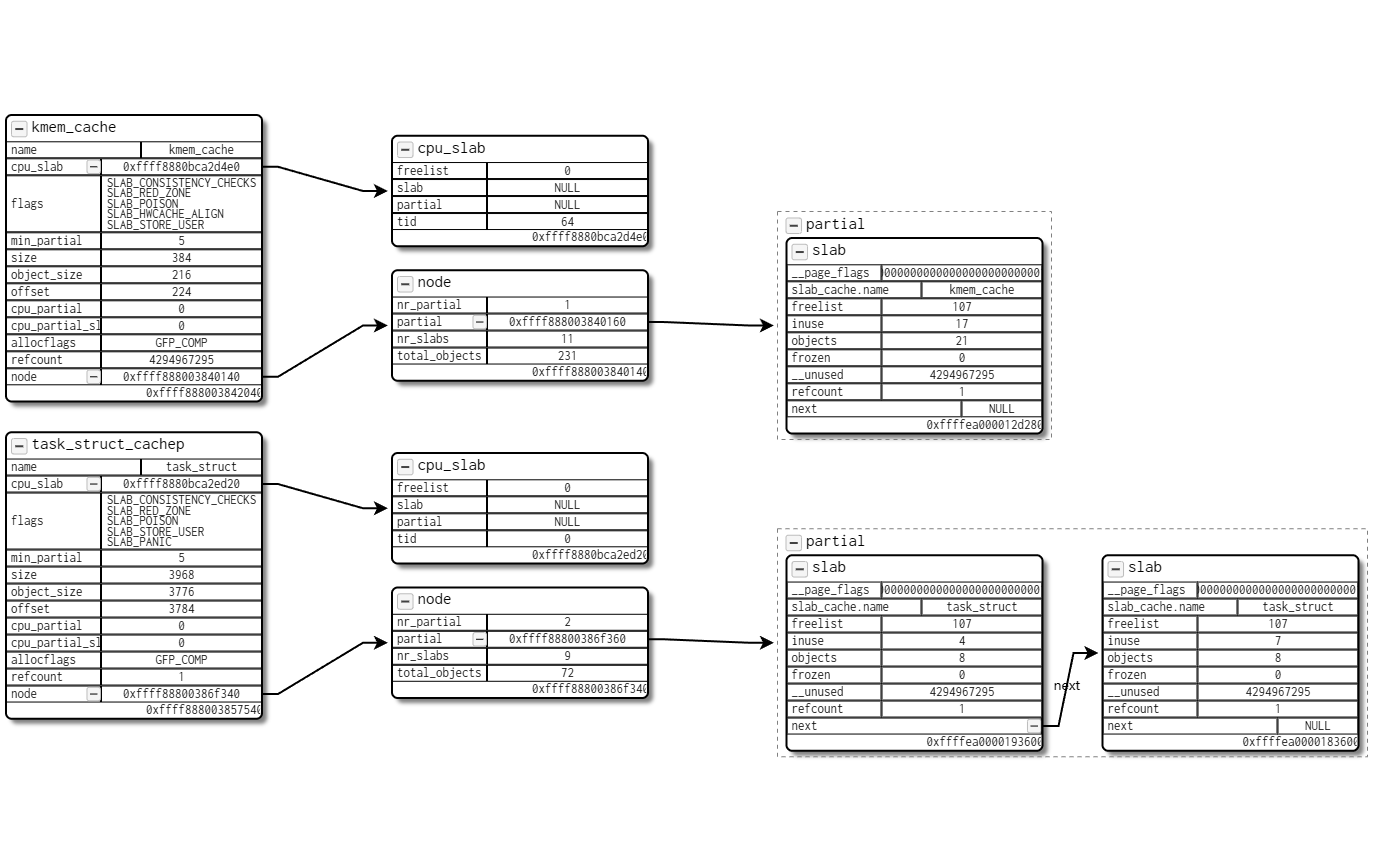

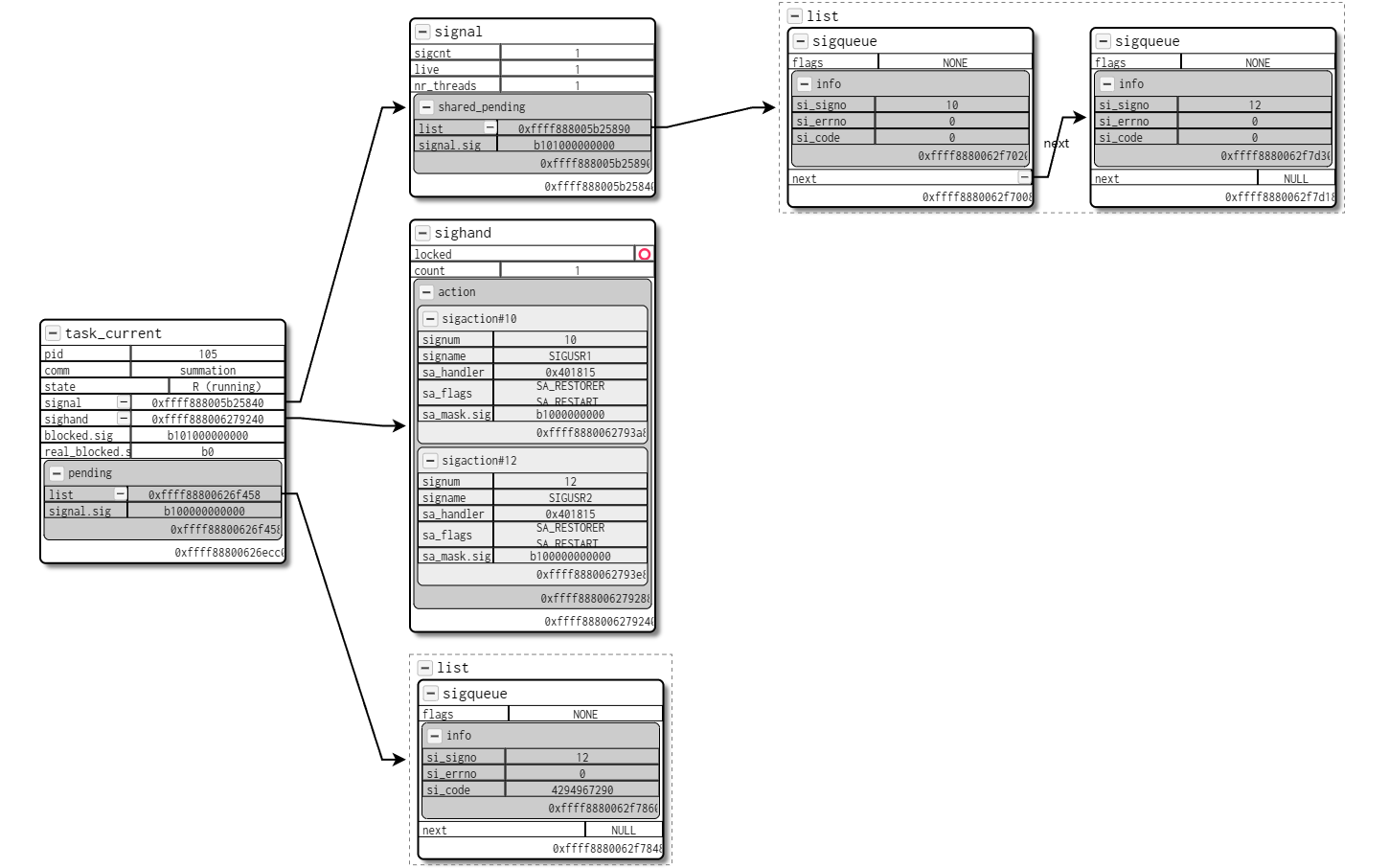

If you use our init image and workload (see workload/init.sh), you can set a breakpoint on the function security_task_getsid and run the executable file /workload/test/summation. When the kernel execution is first paused, use the gdb command vl-update evaluation to reproduce the textbook evaluation results of our paper submission.

The first time of object graph extraction might be slow since gdb needs to cache several statical information in a cold start.

Note that the evaluation dsl/textbook/14_kernfs.vl requires a short hacking into Linux kernel source code. If you deployed the Visualinux by youself, You should manually patch the code in scripts/kernel.patch/fs.kernfs.dir.c.patch to the end of kernel/fs/kernfs/dir.c.
